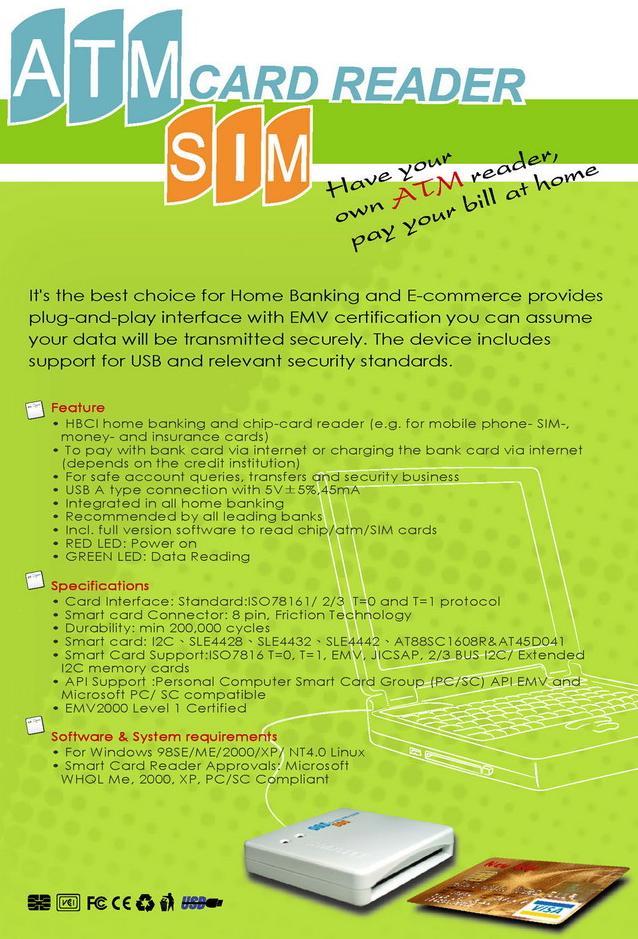

USB 2.0 External ATM/SIM Card Reader

DH-ATM-CR

¡@

USB 2.0 External ATM/SIM Card Reader provides plug-and-play interface to read and write to a smart card. The device includes support for USB and relevant security standards. With EMV certification you can assume your data will be transmitted securely. It's the best choice for Home Banking and E-commerce. Use the ATM/SIM Card Reader you are always on the safe side.

¡@

The ATM/SIM Card Reader is one of Double H's high performance PC/SC smart card readers. The Reader/Writer is available as a USB 2.0 Full Speed device, connected to an external USB port.

¡@

Specifications

  • Dimensions : 65*65* 14mm

  • Power Consumption : USB with 5V¡Ó5%,45mA

  • Card Interface : Standard:ISO7 8161/2/3   T=0 and T=1 protocol

  • Extension : Extension Usb cable with USB A type connector

  • Power LED : LED color is RED

  • Card to enter : LED color is GREEN

  • Power Supply : USB Bus power

  • Smart card Connector : 8 pin, Friction Technology

  • Interface : USB 1.1 & USB 2.0  Supports Plug and Play

  • Durability : min 200,000 cycles

  • Smart card : I 2C ¡B SLE4428 ¡B SLE4432 ¡B SLE4442 ¡B AT88SC1608R&AT45D041

Software & System requirements

  • Smart Card Support : ISO7816 T=0, T=1,EMV, JICSAP, 2/3 BUS I 2C /Extended I 2C memory cards

  • Operating System Support : Windows 98 / ME/ 2000/XP/ NT4.0   Linux

  • API Support :Personal Computer Smart Card Group (PC/SC) API EMV and Microsoft PC/SC compatible

  • EMV : EMV2000  Level 1 Certified

  • Smart Card Reader Approvals : Microsoft WHQL Me, 2000, XP, PC/SC Compliant

¡@

Certifications

  • Safety & Environmental Standard : FCC Class B, VCCI, CE

  • BSMI : yes

  • EMV: Europay MasterCard Visa : EMV2000  Level
