< Colorful transparent Acrylic panels

@

< Approved by UL, CSA, TUV, FCC & CE

@

< Support Intel & AMD CPU

@

<  Option:

- Second fan for 8cm or 12 cm

- Power Factor Correction (PFC)

- AC relay

- Color coating

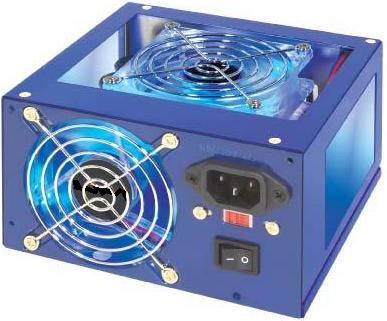

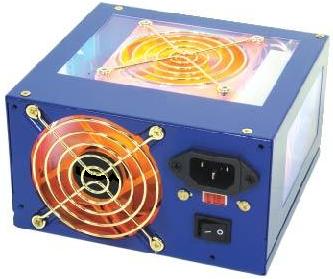

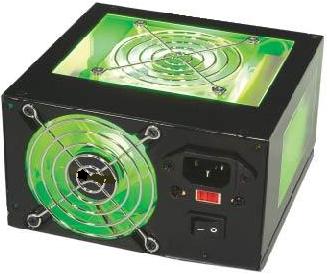

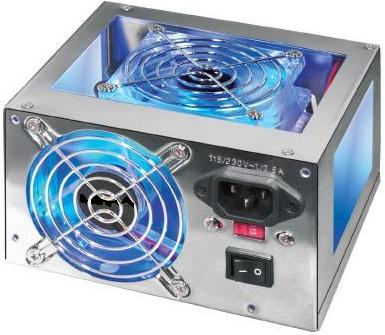

Transparent Power Supply

Feature:
Transparent acryl top cover design makes the inside construction clearly and let you know its working status at any time ,Nice combination of convection fan and speed-control knob can regulate fan speed freely.

Specifications:
AC INPUT VOLTAGE: 90 TO 132 VAC OR 180 TO 264 VAC (USER SELECT SW)
AC INPUT FREQUENCY: 50/60Hz
AC INPUT CURRENT: 6A RMS MAX. FOR 115 VAC
3A RMS MAX. FOR 230 VAC
MAXIMUM INRUSH CURRENT: 50A FOR 115 VAC COLD STAR
100A FOR 230 VAC COLD STAR
LINE REGULATION: 1%
LOAD REGULATION: 5% (ONLY -5V, V12V10%)
MINIMUM CURRENT: +5V/2.0A +12V/1.0A
RIPPLE&NOISE: +3.3V/80mV +5V/80mV +12V/150mV
-5V/200mV -12V/240mV +5VSB/80mV
EFFICIENCY:70% MINIMUM AT FULL LOAD
OPERATING TEMPERATURE: 0J~+50J CENTIGRADE
STORAGE TEMPERATURE: -40J~+85J CENTIGRADE
STORAGE HUMIDITY: 10%~90%
MAEN TIME BETWEEN FAILURE : 20K HOURS MINIMUM AT 25JAMBIENT
SIZE(L*W*H): 172mm*150mm*85mm

@

500W 8cm Ti-Coating UV with BLUE LIGHT

500W 8cm Blue-Coating UV with BLUE LIGHT
400W 12cm Ti-Coating with BLUE LIGHT UV 400W 12cm Blue-Coating with BLUE LIGHT UV
400W 8cm Black-Coating UV with GREEN LIGHT

400W 8cm Blue-Coating UV with ORANGE LIGHT

@

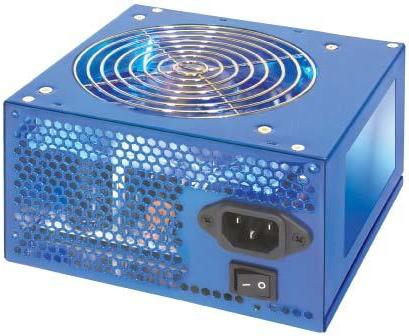

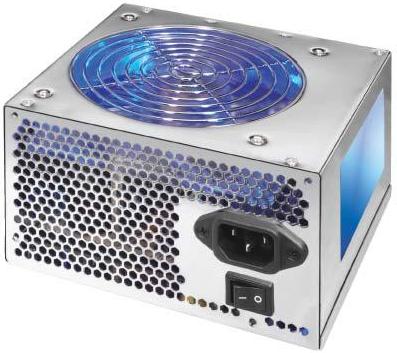

ATX Divine Power Switching Power Supply Backed by International Approvals, including: UL, CUL, TUV, SEMKO, NEMKO, DEMCO, FINDO, FCC, CE, and BSMI

@

Model No.                                                                 Dual Fan

- Supports Intel ATX 12V ver.1.1 & 2.03 Standard.

- Compliant With AMD K7 (Athlon).

- 2 High Quality Bearing Fans, Suitable For "ALWAYS ON" application.

- Fast Cooling, Low Noise & Ripple.

- Fan Grill & Gold Plated Connectors, Preventing Rust & Bad Connection.

- I/O Short circuit & Overload Protection Design.

- LED fan (Optional)

- Golden-coated connector

- Golden Heat-sink

- Active PFC (Optional)
