Description

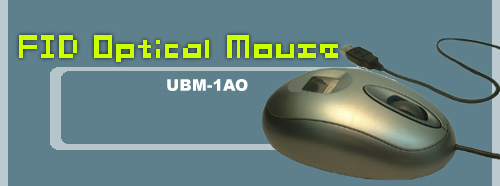

  1. Convenient "Two-in-One" ordinary optical mouse with high-tech fingerprint
    module built-in. Fingerprint module is also available for other
    mouse/keyboard vendors to integrate with their products.
2. Ultimate privacy & security for your data/information & computer.
3. Fingerprints to log onto all Windows platforms (all version).
4. Fingerprints to deactivate Screen Saver (all version).
5. Fingerprints to encrypt & decrypt files (all version).
6. Glossy modern optical mouse attached to USB of PC & Notebook.

@


Applications
1. Protecting sensitive data from "Peeping Eyes" - privacy.
2. Protecting sensitive data from Hackers - security.
3. Standalone version ideally for single/multi-users using one computer.
4. Client-Server version ideally for network privacy & security.

  Features
  1. Optical sensor for capturing of 3D-fingerprint minutiae.
2. Triple DES encryption technique for high security.
3. Firmware automatically ignores residual fingerprints.
4. Easy operation of fingerprint enrollment & matching.

@


  Specification


Sensor

Optical

Hardware Interface

USB

Resolution

500DPI

Field Size

300X300 pixels

Gray Level

256 levels (8 bits/pixel)

Minutia Size

512~1024 bytes

False Rejection Rate (FRR)

1/1000

False Acceptance Rate (FAR)

1/1,000,000

Allowable Rotation

15

Allowable Displacement

10 mm

Matching Speed

< 1 second

Scanning Speed

1/5 second

Dimension

85(H) 55(W) 15(D) (mm)

Weight

500g

Power Consumption

DC5V x 110mA

Hardware requirement

Pentium200 / above 32M RAM
