8213

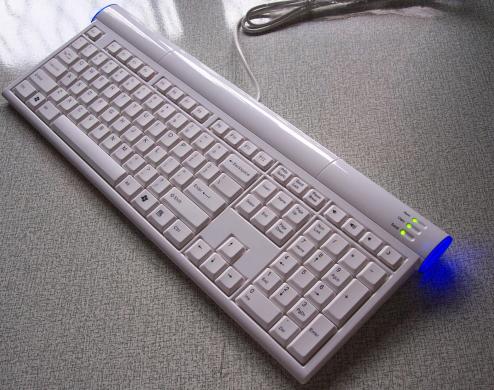

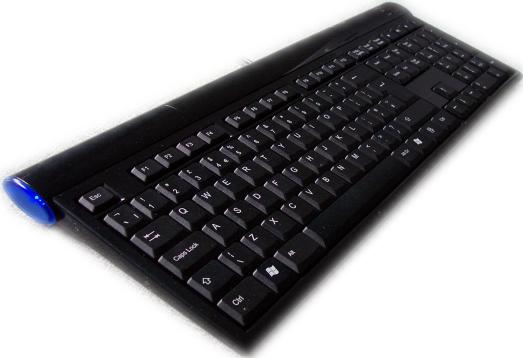

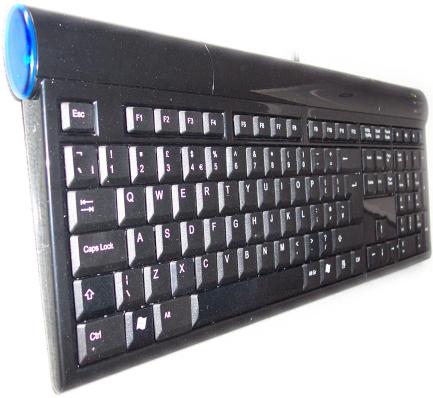

Super Slim Multimedia keyboard
8213
Super Slim Multimedia keyboard
8213B
Super Slim Multimedia keyboard
¡@
Features
• Scissor type key architecture
• Compatible with USB 1.1 specification
• 4 hot-keys: Volume up , Volume down, Mute and Sleep
• Slim and elegant design
• Multi-lingual
• Silent, stable and comfortable typing
Mechanical Specifications
• Key: 108/109 keys
• Key pitch: 19.05mm
• Peak force: 55 +/-15 g
• Switch travel: 2.4 +/-0.5mm
• Switch reliability: 5 million cycles
• Keyboard dimension: 460x165x24.5 mm (LxWxH)
• Switch mechanism: Membrane
Electrical Specifications
PSK-5000H: USB with two down stream ports
• Compliance to USB 1.1 spec
• Electrical data: +5VDC +/- 5% @ 300mA (max)
• Agency Approvals: FCC¡BCE¡BBSMI
PSK-5000U: USB Interface
• Compliance to USB 1.1 spec
• Power consumption: +5VDC +/- 5% @ 100mA (max)
• Agency Approvals: FCC¡BCE¡BBSMI
PSK-5000: PS/2 Interface
• Compatibility: IBM AT, PS/2
• Power consumption: +5VDC +/- 5% @ 300mA (max)
• Agency Approvals: FCC¡BCE¡BBSMI
Environmental Operation Condition
• Operating temperature: 0 degree C ~+50 degree C
• Storage temperature: -20 degree C ~+65 degree C
¡@
