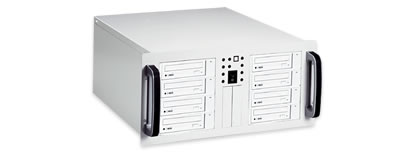

19" Rackmount Storage P-S5HA(S5HR)/S5VA(S5VR)
engineeringdimensionsfeaturesspecification
Back Overview

Rear Panel




Features
5U Rack-Mount Storage Chassis meets EIA RS310C Industrial standard and FCC/CE requirements .
Rugged construction and design for harsh industrial environment .
SCSI-1/SCSI-2/Wide SCSI/ Ultra Wide/Ultra2 Wide interfaces are available .
Shock resistant drive bracket exposed :
P-S5HA / P-S5HR: (8x) open 5.25" drive bay by horizontal display
P-S5AA / P-S5AR: (8x) open 5.25" drive bay by horizontal display & (2x) open 3.5" drive bay by vertical display.
Included 8x drive space are easily installed with HDD / Mobile HDD Rack / CD-R/RW drive device .
Extruded & durable Aluminum handles .
Ball bearing Fans with removable Air filter to have better ventilation and easy replacing .
AT 300W / AT 300W Redundant industrial grade power supply w/safety-approved .
Excellent mechanical designed for best shock-proof , dust-proof , water-proof and air-tight .




Specification
Model No.
P-S5AA
P-S5AR
P-S5HA P-S5HR
Drive Space 5.25" Half-height
8
8 8 8
3.5" Open
2
2
3.5" H.D.D. (Hidden)

Interface
SCSI-1/SCSI-2/SCSI-3/Ultra SCSI/Ultra II SCSI
Internal Cable
IDC 50 x 8 or IDC 68 x 10
IDC ( 50 / 60 ) x 8
ID Switch
10
10 10 10
Cooling Fan 8cm Fan

12cm Fan
Power Supply
( Optional )
PS/II AT 300W 300W
Redundant ATX   Redundant 300W   Redundant 300W
Safety
UL , CSA , TUV
Dimension
(W.x D.x H.)
mm
482.6 x 482 x 221.5
Inch
19.0 x 19.69 x 6.96
Packing 1pce / 1CTN N.W. :  12.4 kgs 15.7 kgs 11.8 kgs 15.3 kgs
G.W. :  15.6 kgs 18.6 kgs 13.3 kgs 16.8 kgs
MEAS. : 4.25 cuft
4.25 cuft 4.25 cuft 4.25 cuft
