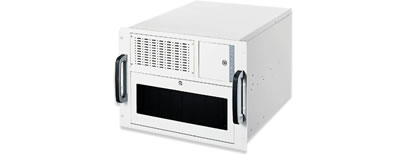

19" Rackmount Server P-P8ER
engineeringdimensionsfeaturesspecification
Back Overview



AT/ATX 300W P/S .
Mini Redundant 250W/300W

ATX Redundant 300W P/S




Features
8U EIA RS310C Rack-Mount chassis specification & meets for FCC / CE requirements .
Rugged construction and design for harsh industrial environment .
Support ATX/Baby AT motherboard and 7-20 slots passive backplane .
Shock resistant drive bracket exposed : (8x) open 5.25" , (1x) open open drive bay .
4 x 12cm ball bearing Fans with removable Air filter to have better ventilation and easy replacing .
AT/ATX/hot-swappable Redundant industrial grade power supply w/safety-approved .
A lockable front door for dust-proof integrity and running security .
Excellent mechanical designed for best shock-proof , dust-proof , water-proof and air-tight .
The front door with hinge design for smooth opening & security .
Clear activity LED indicator on the front side .




Specification
Model No.
P-P8EX(8U)
Drive Space 5.25" Half-height
8
3.5" Open
1
3.5" H.D.D. (Hidden)
0
Cooling Fan  12 cm Fan
4
Rear Panel* Slot
7 / 20
DB-9
4
DB-25
2
Power Supply( Optional ) PS/II AT
ATX
PS-II 300W or PS-II Redundant 300W
Safety
UL , CSA , TUV
Dimension(W.x D.x H.) mm
482.6 x 572.0 x 356.0
Inch
19.0 x22.52 x 14.02
Packing 1pce / 1CTN N.W. :
26.5 kgs
G.W. :
30.0 kgs
MEAS. :
6.53 cuft
