19" Rackmount Server P-P1SX2/P-P2SX3
engineeringdimensionsfeaturesspecification
Back Overview

ATX 250W P/S for P-P1SX2

ATX 300W P/S for P-P2SX3




Features

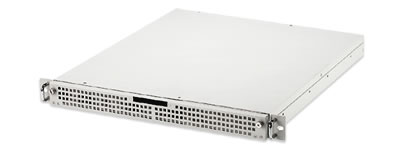

P-P1SX2 ( 500mm depth )
1U EIA RS310C Rack-Mount chassis specification & meets FCC / CE requirement .
Support 1 x 5.25" Open , 2x3.5" hidden device bay .
Included 1 x PCI riser card ( 32 bit or 64 bit ) .
Special slim ATX 250W power supply included .
With 2x4cm ball bearing fans ( optional 2 fans can be installed by request ) .
Front door included .
P-P2SX3 ( 500mm depth )
2U EIA RS310C Rack-Mount chassis specification & meets FCC / CE requirement .
Support 1x5.25" Open , 1x3.5" open , 4x3.5" hidden device bay .
Included 2 x PCI riser card ( 32 bit or 64 bit ) .
Special slim ATX 300W power supply included .
With 2x8cm ball bearing fans in front & Fan alarm controller board .
Front door included .




Specification
Model No. P-P1SX2 (1U) P-P2SX3 (2U)
Drive Space 5.25" Half-height 1 1
3.5" Open  0 1
3.5" H.D.D. (Hidden) 2 4
Cooling Fan  4 cm Fan  2
8 cm Fan    2
Rear Panel* Slot 1 1
ATX IO Aperture 1 1
ATX 1/0 (B) 1 0
ATX 1/0 (C) 1
Power Supply( Optional ) PS/II ATX
250W
300W
Safety
UL , CSA , TUV
Dimension(W.x D.x H.) mm  426.5 x 558 x 44.3  426.5 x 500 x 88.5
Inch 16.77 x 21.96 x 1.74 16.79 x 19.69 x 3.49
Packing 1pce / 1CTN N.W. :  9 kgs 11.2 kgs
G.W. :  12 kgs 13.2 kgs
MEAS. : 2.41 cuft 4.41 cuft
