Notebook Cooler Pad + 3 or 4 USB Hub + Card Reader    NP-201

Cooling Down Your Notebook


Model No.: NBC-K3300S


Description:  Notebook Cooler Pad + 3 or 4 USB Hub + Card Reader

Cooler Pads

·          Slim And Smart Design Of The Cooling Pad System With Large, High-Performance And Extra Quiet 2 Fans Built-in Which Absolutely Helps To Dissipate The Heat-air Away From Underneath The Notebook Computer For Cooling Down The Overall Temperature Of Your System

·          Extremely Heavy-Duty Construction Of the Cooling Pad To Afford Any Weight Or Pressure Put-On

·          Power Source Supported Easily By The Plug-And-Play USB Connection As A Self-power Mode

·          Convenient, Reliable And Comfortable To Carry

·          No Need For Any Installation

·          Compatible With Any Notebook Computers


·          Compliant With USB Version 2.0 & Backward Compatible With USB 1.1.

·      Support Data Speeds OF Up To 1.5/12/480Mbp.

·      Support Both OHCI & UHCI spec.

·      One Upstream Port And Four Downstream Port

·      Over-current Detection And Protection For Each Downstream Port

·      Support Bus-powered And Self-powered (with linear power adapter)

·      Hot Swappable- Plug & Play, Daisy Chain Up To 127 Simultaneous USB Devices

·          Support Mac OS 8.6+,Win 98, SE, ME, 2000 & XP

Card Reader

·          Compliance With Universal Serial Bus Specification ver. 2.0 & Backward Compatible With USB1.1.

·          Supports CF , CFⅡ, Micro Drive, SM,  SD, Mini SD, MMC 1, MMC 2, RS-MMC, MS, MS PRO, MS DUO, MS PRO DUO, MAGIC GATE, MAGIC GATE DUO, XD

·          Easy Plug & Play Connection.

·      Supports Data Speed Of Up To 1.5/12/480 Mbps Device

·          Works With Windows 98 OSR 2.1 & Win 98 SE/ME, Win2000/XP & Mac OS 8.6 Or Above

Standard: CE, FCC






Country of Origin: China

Remark: with 3-Hub or 4-Hub (Optional)

Technical Index:



Air Flow: 28CFM

Speed: 1500 rpm

Noise Level: 21 dB

Rated Voltage: DC 5V

Power Consumption: 1 W

Rated Current: 0.2 A

Fan: 80 x 80 x 15 mm (L x W x H)

M.T.B.F.: 20,000 Hours


Packing Details:






Unit (mm)

Gift-Box (mm)

Carton (mm)

Unit (g)

Gift-Box (g)

20pcs /Carton (kgs)

6400 pcs

13200 pcs


235 x 27 x   317

600 x 420 x 450

420 g

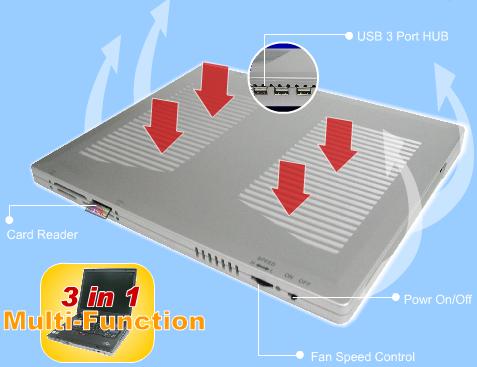

Multi-Function 3 in 1:Cooling Pad, USB HUB, Card Reader
