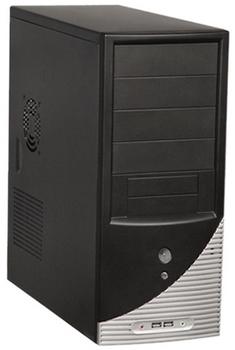

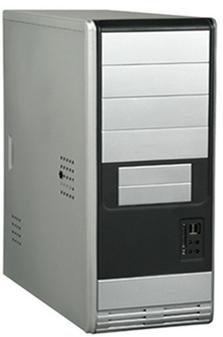

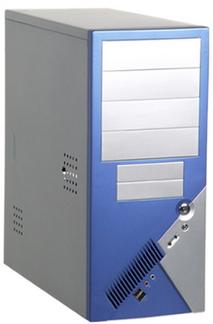

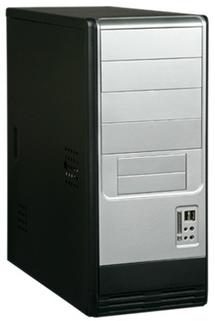

Product information:    Contact us

Case dimension: (L*W*H) not include front panel: 380mm*180mm*420mm
Carton dimension: (L*W*H) 475*225*450(mm)
Driver space: 4*5.25, external:2*3.5, internal:4*3.5
Expansion slots: 7 full slot
Space for MB : any types, width up to 244mm
Front port: 2*USB+AUDIO
Feature 1: hand screw backside, easy to open
Feature 2: folded edge, safe for assemble
Feature 3: clips on front panel, screwless design
Feature 4: SECC metal, only one side painting, CE/CB/FCC standard
Container loading: 40HQ: 1500 PCS

can put the 12cm fan in the front panel and rear panel

Side Panel

Features and Benefits:
Thermally Advantaged Design
Fully frame of reference Intel design guide
Meet Intel 3.4+GHz CPU Thermal Requirement
Big round venting holes for air flow
Optional side and rear cooling fans
side venting air duct
Easy maintenance and installation
Patented screw design for 5.25ˇ¨x 4and 3.5ˇ¨ x2devices
Removable external 3.5ˇ¨x 1 device
Removable internal 3.5 drive (optional)
Screw design for add-on cards, CD-ROM, and FDD
Labor Care , Labor Friendly
Non-angle, non-hurtting hand design,
Deeply pressed molding techniques adopted, and all edges folded for user protection.
Maximum Security
Stander offering padlock loopˇBsupports Kensington lock
USB2.0 FPIO Support
Optional USB2.0/AC97ˇ¦Audio or USB2.0/High Definition Audio FPIO Board
Excellent EMI Solution
Optimized real contact points for each assembly part
Optional EMI conductive spring for slot windows
Support Kensington lock, key lock (option)
Technical Parameter :
Specifications
M/B form factor:  microATX /ATX
CPU Type : Intel P4 / Prescott (LGA775)
       Intel® Celeron, Pentium® 4 and AMD Athlon™ 64/FX
PSU Watts: 200W (ATX12V) or above
Switches/ Controls:  Power ON / OFF , Reset
Indicators: Power & HDD Activity
Slot Openings: 4 / 7 PCI
Cooling Fan: Rear/side: 80mm
Front Panel I/O: USB 2.0: 2 ;    Audio ( Option AC97 or HD ): 2
Speaker: Single Speaker (Optional)
Security:  Security Lock    ;Padlock loop
Construction Material:  SGCC/SECC
Sheet Metal Thickness :SECC 0.5 mm ;   SGCC 0.45 --o.5 mm
Plastic Material Type:  ABS


32BS32SB32BG32SG

ˇ@


31BS31SB31S


30SB30SL30SR30SGR


30-HSB30HBS


28-HSB28SB28BS


18-HBR18SGR18SS18BS18SB18SBL


17BS17SB-117S17SB-2


13BS13SB13SBL
